Eelvõimendi, fonokorrektor Pro-Ject Phono Box DS2

349.00 399.00

Kvaliteetne eelvõimendi ja fonokorrektor tootjalt Pro-Ject.



Phono preamplifier

Premium class phono preamplifier with MM & MC capability

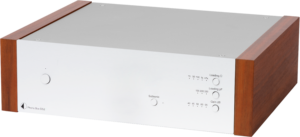

Phono Box DS2 is a highly adjustable phono pre-amplifier suitable for all common MM and MC cartridges. With the ability to switch easily between input impedance and capacitance, as well as gain on front it becomes one of the most user friendly phono stages at this price point. It features one pair of RCA inputs for your turntable and one pair of RCA ouputs which will be conected to your pre-amplifier or integrated amplifier. The casing is made of a durable aluminium metal sandwich construction, which not only will effectively protect it against electromagnetic interferences and vibrations, but will also please the eye with its simply and elegant esthetics. Phono Box DS2 features a very linear circuit design to deliver the best possible sound from a minimalistic PCB. With its high value sonics and low cost price it becomes an audiophile bargain!

Magnetic real wood side panels in walnut, rosenut & eucalyptus are available separately & not included in the scope of delivery.

Input impedance 10-47 kOhm
Capacitance 100/220 and 320pF
Gain 40/45/50/60/65 dB
Output voltage 500mV @ 1kHz (at 5mV input voltage @ 1kHz)
Noise floor – 80 dB V
THD+N < 0.02%
THD 0.0008%
RIAA equalisation curve accuracy Within 0.5dB/20Hz – 20kHz
Inputs 1 pair RCA
Outputs 1 pair RCA
Power supply 18V/500mA DC; 110 – 240V, 50/60Hz
Power consumption 100 mA DC, < 1 Watt standby
Dimensions W x H x D 206 x 71 x 194 mm (Alu), 240 x 72 x 194 mm (Wood)
Weight 1320 g (Alu) without power supply, 1770 g (Wood) without power supply
