Kvaliteetne digitaal-analoog konverter (DAC) tootjalt Pro-Ject.
High End DAC with 32bit and DSD256 support
miniature high quality digital to analogue converter!
DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for soundshaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the asynchronous XMOS USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution datas up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. Unwanted noise coming in through USB is double filtered to suppress them to a level where it can’t affect audio. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference!

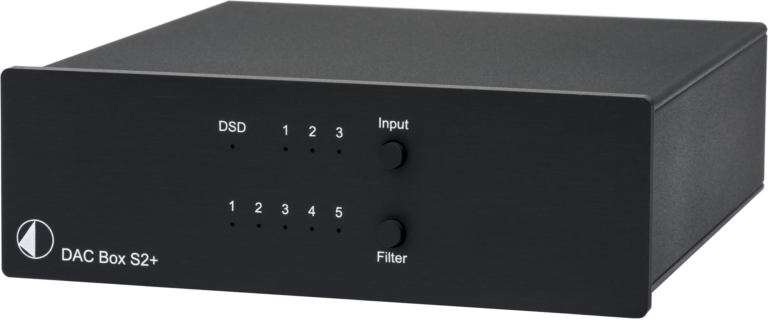

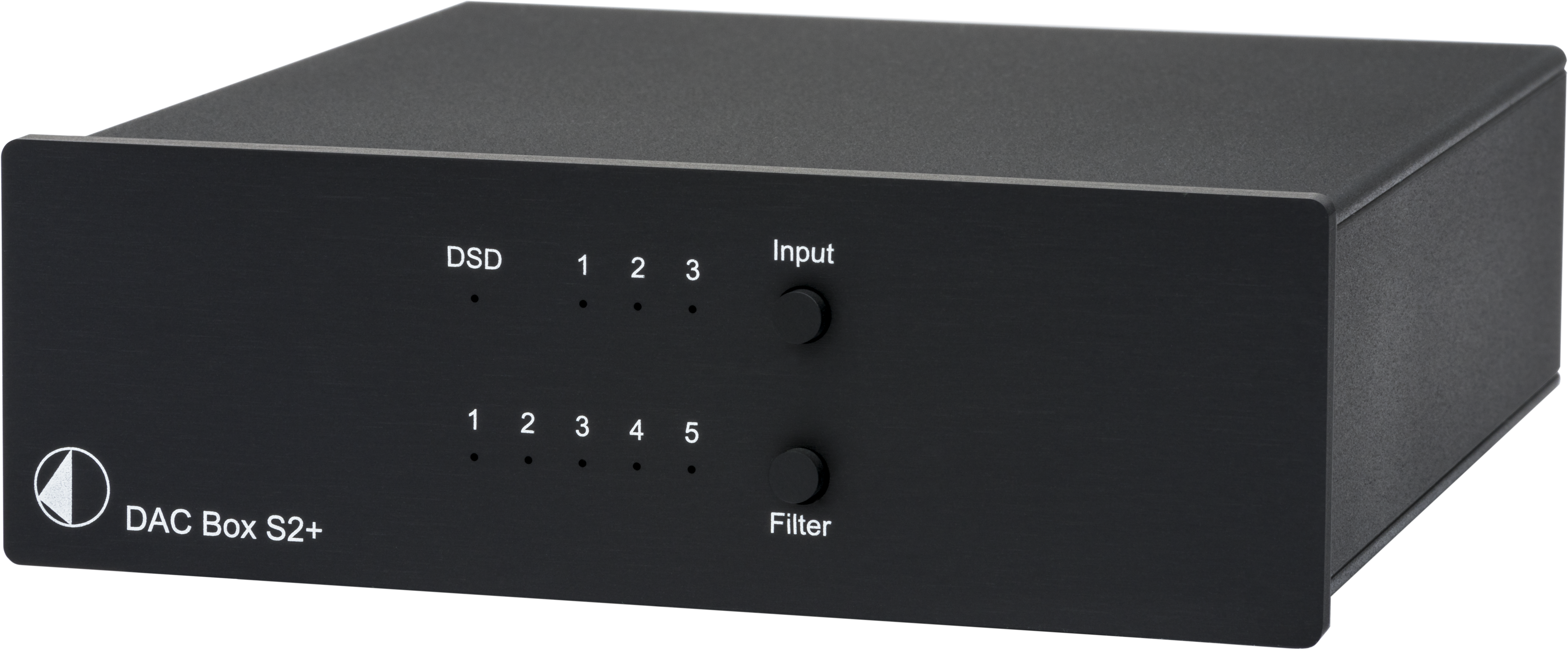

DAC Box S2 + comes in silver or black.

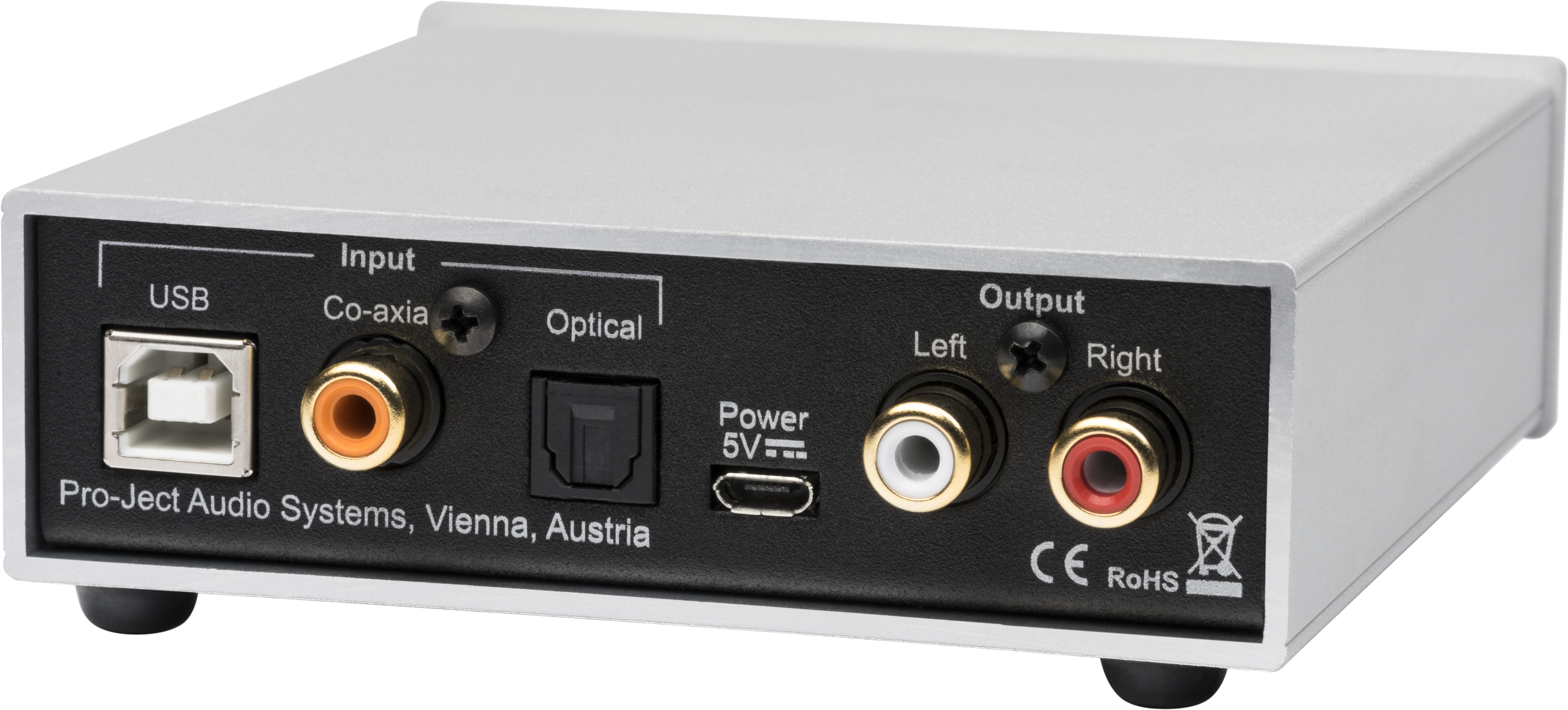

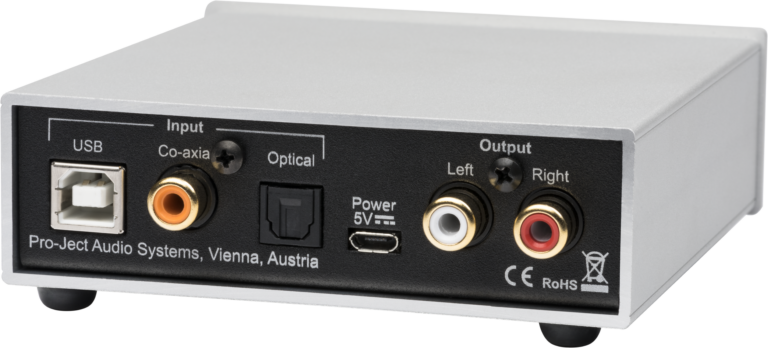

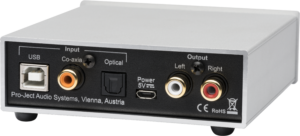

Digital inputs | 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink) |
---|---|
D/A-converter | 1x ESS9038Q2M 32-bit Playback formats |
Filter settings | 5 different selectable on front |
USB | up to DSD256, PCM up to 32b/768kHz |
Coaxial | PCM up to 24 b /192 kHz |
Optical | PCM up to 24 b / 192 kHz |
Frequency response | 20 Hz – 20 kHz |
THD | 0,0007% bei 0dB, 2V RMS, 1kHz |
Dynamic range | 120 dB |
Output | 1 pair of RCA/Cinch-sockets |
Outboard Power supply | 5V/1A DC (included) |
Dimensions W x H x D | 103 x 37 x 122 mm 2 (including knob and connectors) |
Weight | 355g without power supply |
