MM cartridge
Concorde at its roots
Ortofon‘s Concorde series was highly acclaimed especially at professional DJ‘s. An often overlooked detail is, that it had its roots as a HiFi cartridge. That is exactly where we want to position it again. This special collaboration between Pro-Ject and Orftofon revealed this high value phono cartridge – Pick it S2 C!

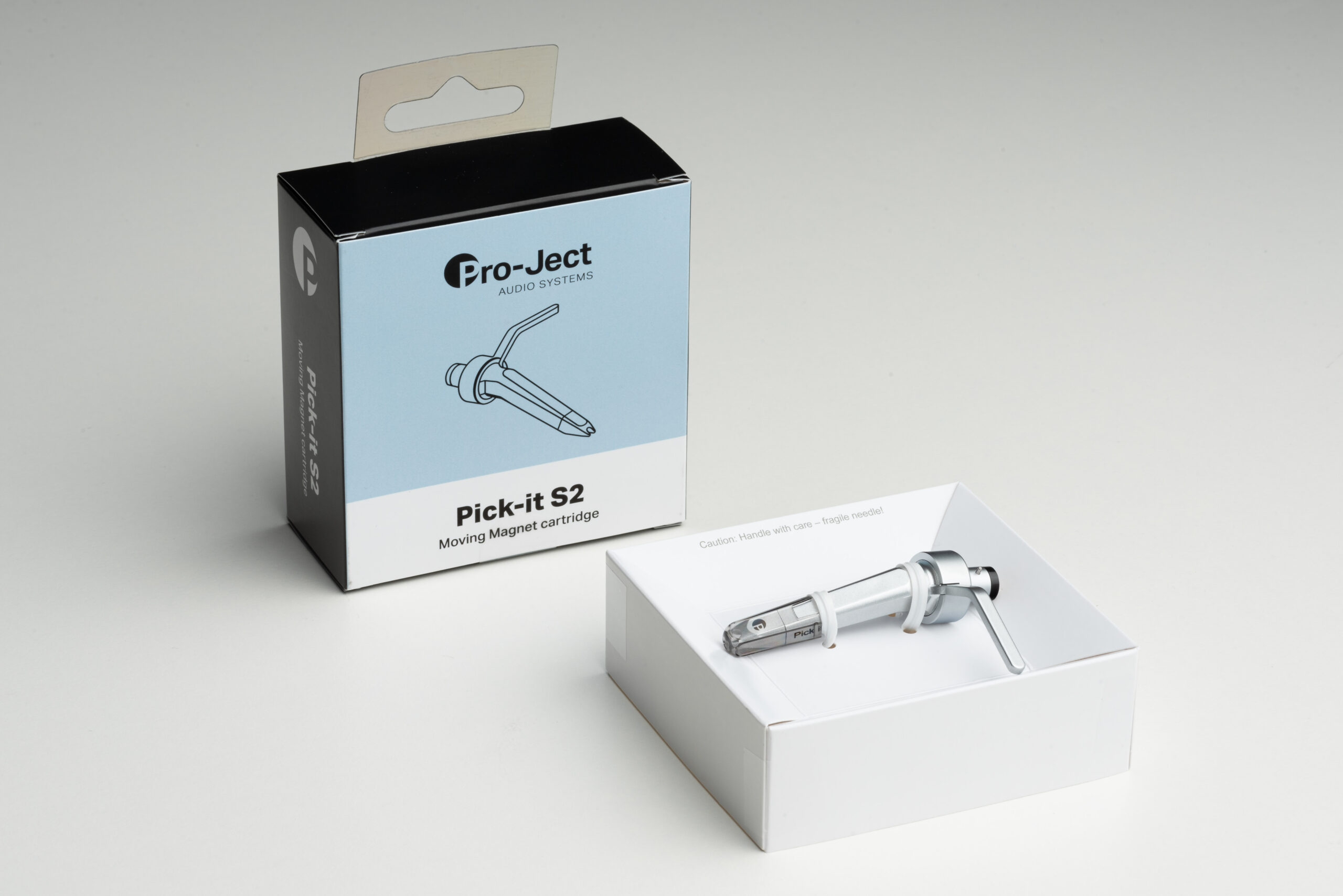

Pick it S2 C: Cartridge par excellence
Suitable for all tonearms with SME union nut, Pick it S2 C is easily mounted and removed. The body of this system is held in elegante silver looks. Pick it S2 C offers a thrilling and exciting sound, which oozes of details and high fidelity, it unveils unheard precision, dynamics and sound stage in this price range. With its 6 mV output voltage it is prepared for all weaker phono stages and DJ turntables. The SME connections enable the customer to mount Pick it S2 C within seconds. This offers you the freedom to install your favourite cartridges on any suitable tonearm in no time. You can exchange or upgrade the needle if needed, even for a higher grade one (like OM20/30). The Polycarbonate body provides high stiffness, which gives the sound its unrivalled dynamic character.
Needle type | elliptical |
---|---|
Weight | 18.5 g |
Stylus tip radius | 13/25 µm |
Frequency response | 20 – 22.000 Hz |
Output voltage | 6 mV |
Channel separation | 24dB @ 1kHz |
Compliance dynamic/lateral | 7 µm/mN |
Tracking force range | 2.0-5.0 g |
Recommended tracking force | 3.0 g |
Tracking angle | 20° |
Internal inductance | 450 mH |
Recommended load resistance | 47 kΩ |
Recommended load capacitance | 200-600 pF |
