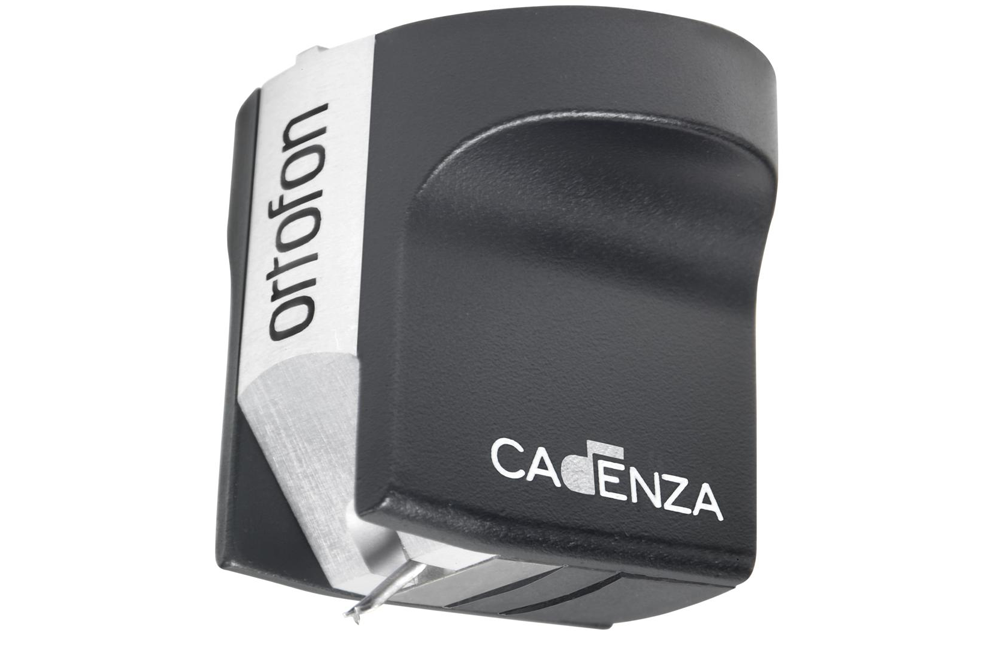

The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminium cantilever. The stylus radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.
For easy use the pins are connected so you get the same signal from both pairs of connecting pins.
Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous and moderate.
At Ortofon we constantly look for new technology to be used in our products and push the performance of existing technology. Thus we assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among our most popular cartridges. Nevertheless Ortofon decided to develope a new cartridge series that is even more ambitious.
By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminium housing in the models as well as other changes, we have been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support our customers, who have an extended interest in micro groove mono records.
Output voltage at 1 kHz 5 cm/sec. | 0.45 mV |
---|---|
Frequency response | 20 Hz – 20 kHz – +3/-1 |
Tracking ability at 315 Hz at recommended tracking force | 70 μm |
Compliance, dynamic, lateral | 12 μm/mN |
Stylus type | Nude Fine Line on Alu cantilever |
Stylus tip radius | r/R 8/40 μm |
Tracking force range | 2.2-2.7 g (22-27 mN) |
Tracking force recommended | 2.5 g (25 mN) |
Tracking angle | 20º |
Internal impedance, DC resistance | 5 Ohm |
Recommended load impedance | 50-500 Ohm |
Cartridge body material | Stainless steel Aluminium |
Cartridge colour | Natural/Black |
Cartridge weight | 10.7 g |
