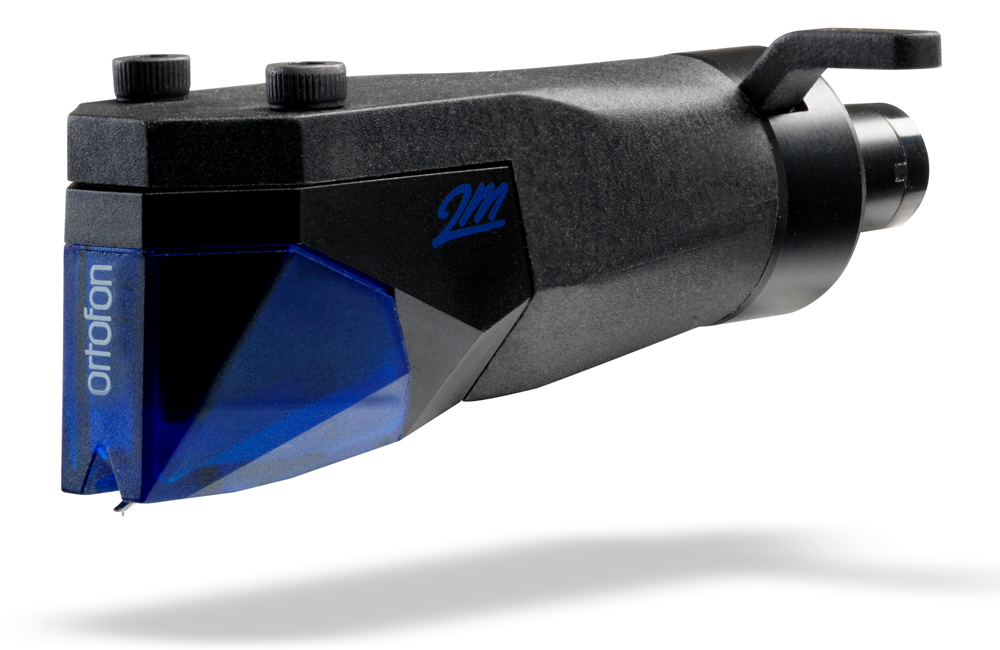

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!
Features:
– Universal mount fitting a wide range of S-shaped tonearms.
– Weight with a 2M cartridge pre-mounted 20 g.
– The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
– Elegant hi-tech design
– Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount.
Output voltage at 1000 Hz, 5cm/sec. | 5.5 mV |
---|---|
Channel balance at 1 kHz | 1.5 dB |
Channel separation at 1 kHz | 25 dB |
Channel separation at 15 kHz | 15 dB |
Frequency response | 20-20.000 Hz |
Tracking ability (315Hz, lateral) | 80 µm |
Tracking force range | 1.6-2.0 g (16-20 mN) |
Tracking force, recommended | 1.8 g (18 mN) |
Compliance, dynamic (lateral) | 20 µm/mN |
Stylus type | Nude Elliptical |
Tracking angle | 20° |
DC resistance | 1.3 kOhm |
Inductance | 700 mH |
Recommended load resistance | 47 kOhm |
Recommended load capacitance | 150-300 pF |
2M PnP MkII weight | 20 g |
2M PnP MkII length | 52 mm |
